01What it is

Reciprocating Compressor

A reciprocating compressor is an intermittent-duty piston compressor — a motor driving one or more pistons inside cylinders, delivering compressed air to a tank-mounted or floor-standing receiver. It is the lowest-upfront-cost compressor type, field-rebuildable with common parts, and sits in the generation layer at the head of the compressed air system. Sized fractional HP up to ~30 HP for shop work; heavy-duty industrial frames reach 50+ HP. Built single-stage (to ~175 PSI) or two-stage (to ~200 PSI).

Compare tiers ↓ How to sell this ↓ Request a quote →
Real-world reference Representative reciprocating compressor

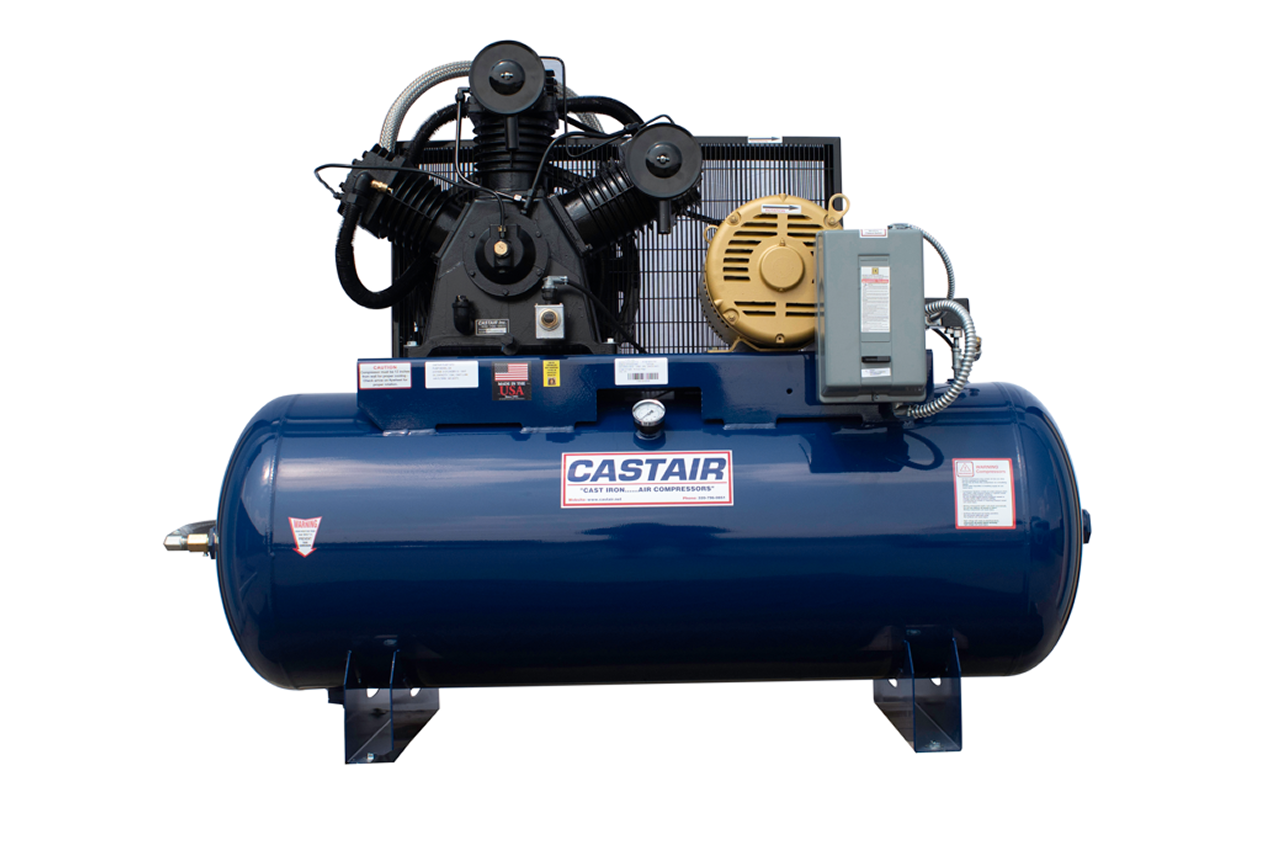

Reciprocating Compressor — representative product photo
02Why it's needed

Why this matters.

Tips and pointers on when a reciprocating compressor is the right-sized answer — and when it will burn out in 18 months. Scroll the strip →

01 · Key point
Lowest upfront cost, period.

Cast-iron piston pump on a tank-mounted receiver is the cheapest entry point in the compressor category. Right-sized for shops where a rotary screw would amortize against a small revenue stream.

02 · Key point
Field-rebuildable with common parts.

Valve plates, ring sets, gasket kits all replace at the customer's bench. 10,000+ running hours on a pressure-lubricated cast-iron pump with disciplined maintenance — a 15-year machine when the duty cycle is honest.

03 · Key point
Tolerates on-off shop work.

Impact gun for thirty seconds, idle for two minutes, repeat — that's a recip's natural rhythm. Output runs ~3.5 CFM/HP at 100 PSI; single-phase up through ~7.5 HP keeps small shops off three-phase service.

04 · Pro tip
Stage count is set by pressure.

Single-stage to ~175 PSI for the 100-125 PSI shop work that covers most accounts. Two-stage to ~200 PSI with inter-stage cooling for 150+ PSI tools, paint systems, or extended-runtime accounts that benefit from cooler running.

05 · Where not to use
Loaded more than ~40 min/hr.

A cast-iron pump is capped at 60-70% loaded time per hour. Push it harder — CNC, production line, multi-shift — and rings glaze, valves cook, rebuild interval collapses from years to months. → Switch to rotary screw when loaded duty exceeds 40 min/hr.

06 · Where not to use
Class 0 or clean-air work.

Oil-lubricated by design — some oil carryover is normal. Food-direct-contact, pharma, electronics fail audit; even paint and fine finishing need point-of-use coalescing + carbon. → Re-spec to oil-free for Class 0 applications.

07 · Where not to use
Noise-sensitive spaces.

Reciprocating runs 80-90 dB versus 60-75 dB on rotary screw — noticeably louder in a working bay. → Move outdoors in a vented enclosure, or migrate to rotary screw when shop noise becomes a complaint.

03Key selection criteria

What we need to spec it right.

From the machine spec sheet → to the part number. Answer what you know — leave the rest blank — and send.

01 · Input
Pull from the customer's tool/demand list or the nameplate of the unit being replaced. Recip output runs ~3.5 CFM/HP at 100 PSI.
Light shop: 10-20 CFM · Two-bay shop: 20-35 CFM · Heavy shop: 35-75 CFM
02 · Input
Pull from the highest-pressure tool or process. Most shops run 100-125 PSI; over-spec wastes energy and runs the pump hot.
100 PSI (general shop tools) · 125 PSI (mixed tooling) · 150-200 PSI (paint, specialty — two-stage)
03 · Input
Ask "how many minutes per hour does the compressor run loaded?" Cast-iron pump caps at 60-70%. Honest answer over ~40 min/hr → route to rotary screw or recip fails in 18-24 months.
Light intermittent (≤25 min/hr) · Standard shop (25-40 min/hr) · Heavy (40+ min/hr → re-spec rotary)
04 · Input
Two-stage when pressure need is above ~150 PSI, or when the customer wants longer pump life from cooler running temperatures.
Single-stage (to 175 PSI, 100-125 PSI shops) · Two-stage (to 200 PSI, paint / specialty / extended runtime)
05 · Input
Receiver sizing rule: minimum 4 gal/CFM general shop; 6-10 gal/CFM for heavy intermittent draws (sandblasting, large impact tools).
60-gal vertical (5-7.5 HP shop) · 80-gal vertical (10 HP standard) · 120-200 gal horizontal (heavy / sandblast)
06 · Input
Above ~7.5 HP typically requires three-phase. Single-phase shops with bigger air needs face an electrical upgrade or a phase converter.
120V/1ph/60Hz (≤2 HP) · 240V/1ph/60Hz (3-7.5 HP) · 230V/3ph/60Hz · 460V/3ph/60Hz (10+ HP)
07 · Input
Outdoor needs a weather-rated enclosure (not a tarp); indoor needs ventilation against 80-90 dB noise and heat rejection. Above 90°F ambient shortens pump life.
Indoor, ventilated · Indoor, enclosed (sound) · Outdoor (weather enclosure)
08 · Input
Number of compressors for this configuration. Need redundancy or staged capacity? Add a separate quote line per variant.
1 unit · 2 units (primary + backup) · 3+ units (lead/lag system)

Need different sizes, colors, or quantities? Fill the form, add to quote, then fill again — each click is one quote line.

04Choose your solution tier  ·  core differentiator

Whatever your lever — spec, value, or price — SPC has the right brand.

Most distributors sell one brand per product type. SPC's 60-brand portfolio means every Product Type page surfaces three real options matched to how your customer is buying today. Pick the tier; the quote desk handles the cross-reference.

01 Industry Leader 2 brands
Chicago Pneumatic
Chicago Pneumatic single- and two-stage piston range
View brand →
Quincy
Quincy QR-25
View brand →
02 Emerging 3 brands
ABAC
ABAC PRO B / Ironman two-stage piston range
View brand →
Belaire
Belaire Iron Series two-stage reciprocating
View brand →
CASTAIR
CASTAIR cast-iron reciprocating range
View brand →
05How to sell this  ·  distributor talk track

The tier conversation closes the deal. The cross-reference catalog wins the next one.

A recip sale is a duty-cycle sale, not a horsepower sale. Get the run-time honest first, then size the box.
The SPC difference · how distributors actually buy

The 30-second positioning

Reciprocating compressors are the entry point of the compressed air category — auto shops, body shops, machine shops, small fabricators, service trucks, ag buildings. The customer almost always opens with a model number from a Home Depot or Tractor Supply ad. The distributor's job is not to match that model number; it's to qualify the duty cycle and pressure requirement so the customer gets a machine that lasts ten years instead of two.

Three pieces: (1) Qualify duty cycle — "across an average day, how many minutes per hour does the compressor actually run loaded?" If honest answer is more than ~40 min/hr, this is a rotary-screw customer. Quote a small rotary screw at the same flow point, explain that recip will overheat. (2) Set pressure and pick stage count — single-stage for 100-125 PSI shops, two-stage for 150+ PSI or extended runtime. (3) Size the receiver and electrical — minimum 4 gal/CFM, confirm phase + voltage.

Tier: Industry Leader tier (pressure-lubricated, cast-iron, slow-speed ~1200 RPM rather than 3450, 10,000+ hour rebuild intervals); Emerging tier (mid-market two-stage with the same architecture at lower price); Economical tier for cost-driven owner-operators with genuinely light duty.

Customer cue → talk move

""Two-bay body shop / small auto repair / machine shop""
Recip is right. Qualify duty cycle. If under ~40 min/hr loaded, 5-7.5 HP two-stage Industry Leader tier on a 60-80 gallon vertical receiver — 10-15 year service life.
""Running a CNC / production line / continuous process""
NOT recip. Route to rotary-screw fixed-speed or VFD. Recip will fail in 18-24 months. Honest re-quote builds trust.
""Customer keeps frying compressors every 2-3 years""
Duty-cycle problem. Cure is rotary screw, not "buy more recips." Common in shops that grew into multi-shift work without upsizing.
""Need 150-200 PSI for paint or specialty tools""
Two-stage. Single-stage runs hot at the top of its range.
""Compressor is too loud in the shop""
Move outdoors in a vented enclosure with intake silencer, OR migrate to rotary screw at 65-70 dB.
""Single-phase only at the building""
Limits the model. Most recips above ~7.5 HP need three-phase. Don't make a phase converter handle a 10 HP motor — maintenance nightmare.
""How long will this compressor last?""
Depends on duty cycle and maintenance. An Industry Leader tier pump at 50% loaded duty with annual oil + filter changes is a 15-year machine; same pump at 80% duty with skipped service is a 3-year machine.
Request a quote → Back to tier compare ↑
06Where it's used

Industries served.

Each industry below uses this product across the listed areas. Open an industry to see how it fits the rest of its system.

Construction & Infrastructure Construction & Infrastructure →
  • Construction yards & equipment rental
Agriculture & Food Production Agriculture & Food Production →
  • Agricultural & equipment-yard buildings
General Manufacturing General Manufacturing →
  • Small machine shops & fabrication

Also applies to Auto repair shops & tire centers · Body shops & collision repair · Service trucks & mobile units · Residential garages & serious DIY

09Install · 6 critical steps

The things that matter on the first install.

Step 01
Confirm install location and ventilation
Reciprocating compressors throw heat — measurably more than rotary screw at the same HP because they reject it all into the room (rather than into oil that gets cooled). Indoor installs need air change and a clear path for intake air; outdoor needs a weather-rated enclosure. Compressor-room ambient above 90°F shortens pump life regardless of brand.
Step 02
Size and orient the receiver
Minimum receiver volume: 4 gal/CFM for general shop work; bump to 6-10 gal/CFM for heavy intermittent draws (sandblasting, large impact tools). Vertical tanks save floor space and drain cleanly; horizontal tanks are more stable but eat floor area. Tank-mounted recips have the tank built in — confirm size matches the application, not just the manufacturer's convenience.
Step 03
Verify electrical service
Match motor voltage and phase to the building's panel. Common pinch: shops with single-phase service that need above 7.5 HP. Solutions: size down to a single-phase unit, upgrade the service, or — only on industrial sites with clean power — install a heavy-duty phase converter rated for the motor's inrush.
Step 04
Plumb the discharge correctly
Use rigid pipe (black iron or aluminum) sized for the flow, NOT flexible hose — flexible hose pulses with the recip's pressure waves and fails at the fittings. Slope discharge piping back to a moisture drain so water gravity-flows out, not into the customer's tools.
Step 05
Install an aftercooler ahead of the dryer
Reciprocating compressors discharge air at 250-350°F; the receiver tank acts as a partial heat sink but doesn't bring air down to dryer-inlet temperature. For applications needing refrigerated or desiccant drying downstream, install a dedicated aftercooler — or the dryer's refrigeration circuit will be overworked and fail early.
Step 06
Drain the receiver — automatically
Manual drain valves get forgotten (usually within the first month). Install an electronic-timer drain or automatic float drain at every condensate-collection point (receiver bottom, aftercooler, dryer pre-filter, dryer post-filter). Route any oil-bearing condensate to an oil-water separator (OWS) — tying oily condensate to sanitary is a regulatory violation in most jurisdictions.
10Troubleshoot · top failures

Most returns trace to one of these causes.

Symptom
Most likely cause
Fix
Compressor stops building pressure / runs constantly without reaching cutout.
Worn or stuck valve plates (most common on older or hard-run pumps), worn piston rings, leaky head gasket, or a downstream system leak large enough that the pump can't catch up. On tank-mounted units it can also be an unloader valve stuck closed.
Isolate compressor from system (close tank valve) and run against a closed discharge — if it builds pressure standalone, the issue is downstream (system leak). If it still won't build, pull the head and inspect valve plates first, then rings. Both are field-replaceable.
Excessive noise, vibration, or knocking.
Loose flywheel or pulley, worn connecting-rod bearings (the knocking sound is the rod hammering against the crank pin), loose mounting bolts, or a bent crankshaft. Belt-drive units can also vibrate from belt misalignment.
Check easy items first — flywheel set screw, belt tension, mounting bolts. If tight, drain oil and inspect for metal particles. Significant metal = rod or main bearing wear; rebuild required. Don't run a knocking compressor — next failure is catastrophic.
Oil consumption higher than normal / oil in the discharge air.
Worn piston rings letting oil past, an overfilled crankcase (most common — splashes oil up into the compression chamber), or a clogged intake filter pulling extra vacuum that pulls oil past the rings.
Check oil level against the sight glass — overfilled is the easy fix and more common than rings. Replace intake filter. If neither resolves, pull the head and measure ring gap. Note: recip is NOT oil-free; some oil carryover is normal and is handled by downstream filtration.
Pump overheating / thermal cutout tripping.
Duty cycle too high (most common — customer outgrew the recip's intermittent rating), ambient temperature too high, fouled cylinder fins (dust insulating the cooling fins), failed cooling fan, low oil level, or wrong oil grade for ambient.
Pull run-hour data — if loaded duty exceeds 60-70%, the customer needs a rotary screw, not a different recip. Clean cylinder fins (often missed at service). Verify cooling fan and oil level.
Compressor short-cycles (turns on and off rapidly).
Receiver tank too small for demand, pressure switch differential set too narrow (typical 20-30 PSI between cut-in and cut-out), or a slow leak below the pressure switch's sensitivity.
Verify tank sizing — minimum 4 gal/CFM. Reset pressure switch to 20-30 PSI differential (90 cut-in / 120 cut-out is typical). Pressure-test the system with the compressor off; pressure dropping more than 5 PSI in 5 min indicates a cycle-inducing leak.
Tank rusting from the inside / persistent water at the drain.
Manual drain valve being forgotten (the universal failure), inadequate ventilation in the compressor room, or a failing aftercooler / dryer letting hot wet air into the receiver.
Replace manual drain with electronic-timer or automatic float drain. Verify dryer is matching compressor output. Tank rusted past inspection criteria is a safety hazard — replace, do NOT patch.
