01What it is

Vacuum Ejector / Generator

A vacuum ejector (also called a vacuum generator) is the air-powered vacuum source on a pick-and-place end-of-arm tool — it turns the machine's compressed air into suction at the gripper, with no separate vacuum pump motor, no electrical run, and no maintenance schedule beyond keeping the supply air clean. It is one quarter of the vacuum end-effector sub-system: ejector + suction cup + vacuum sensor + replacement cup, sold and quoted together as the working unit on every robotic arm, packaging gripper, sheet-metal beam, or pick-and-place head. Sized to the cup volume and cycle rate, the ejector mounts directly on the EOAT (end-of-arm tooling) plate, within inches of the cup it feeds.

Compare tiers ↓ How to sell this ↓ Request a quote →
Real-world reference Representative vacuum ejector / generator

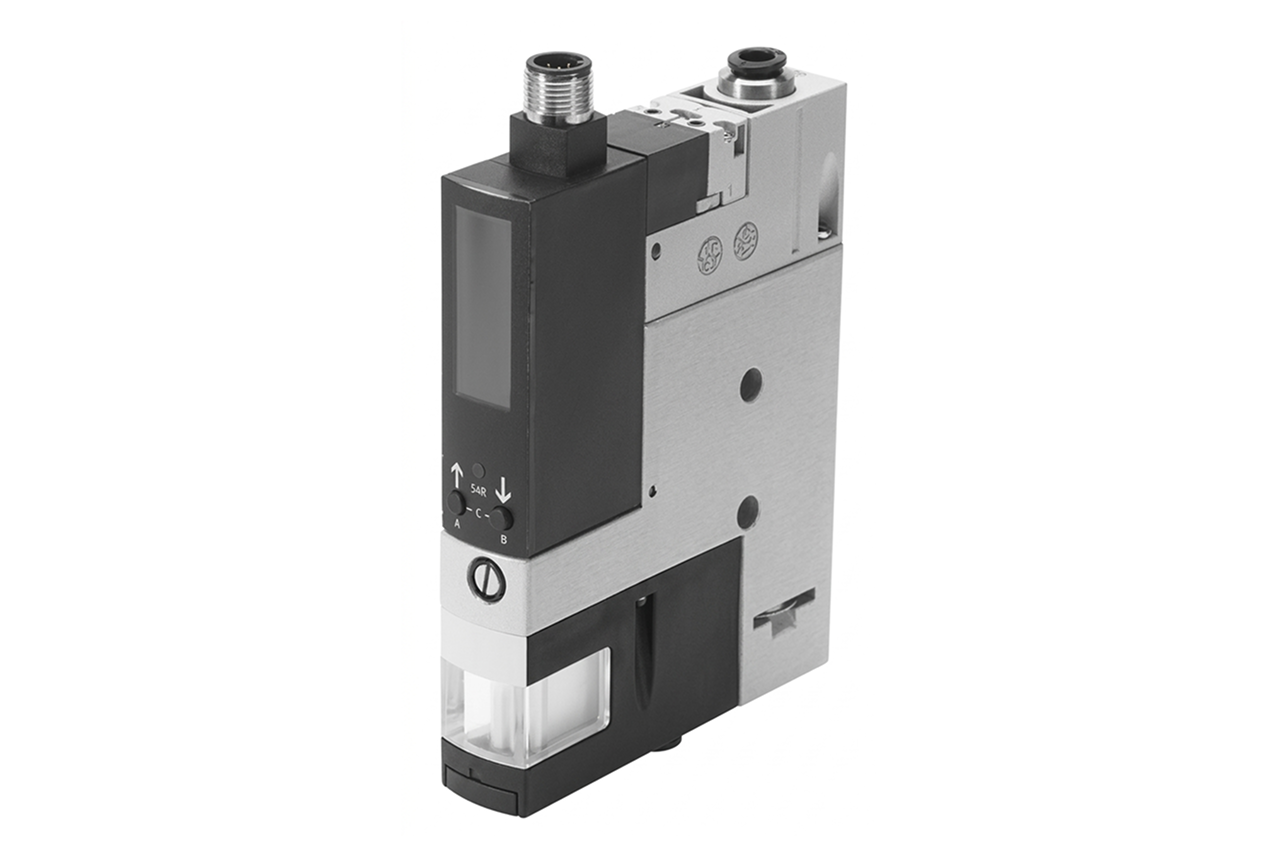

Vacuum Ejector / Generator — representative product photo
02Why it's needed

Why this matters.

Tips and pointers on when an ejector is the right vacuum source — and when to spec something else. Scroll the strip →

01 · Key point
No motor, no maintenance.

A vacuum ejector turns compressed air into suction through a fixed nozzle — no motor, no vanes, no oil. Mounted within inches of the cup on the moving arm; the only wear part downstream is the cup itself.

02 · Key point
Vacuum on demand only.

Air flows only when the supply solenoid opens — typically 0.5–2 SCFM per ejector while generating, zero between cycles. The opposite duty cycle of a pump that runs continuously whether the gripper needs it or not.

03 · Key point
Hits –27 inHg in milliseconds.

Optimum supply is 58–72 PSI; achievable vacuum is –20 to –27 inHg (inHg = inches of mercury, the unit pneumatics uses for vacuum level). Reach time on a properly sized circuit is a few hundred milliseconds.

04 · Pro tip
Pick the stage to the surface.

Single-stage for smooth non-porous stock (sheet metal, glass, polished plastic). Multi-stage for porous or uneven (cardboard, bags, foam) where higher suction flow has to outrun continuous bleed-in. Energy-saving check-valve variant for long-dwell holds — cuts air 60–80%.

05 · Where not to use
Steady-state stationary vacuum.

CNC vacuum tables, multi-station fixturing, and other always-on holds run cheaper on a central pump. → Re-spec to vane pump for sustained flow — distributed ejectors win on moving grippers, lose on stationary loads.

06 · Where not to use
Supply pressure below 58 PSI.

Ejectors do not reach rated vacuum below their optimum window. Under-pressure shows up as missed picks, not as a gauge fault. → Re-spec FRL and drop size for a 65 PSI floor at the ejector inlet before adding more nozzle.

07 · Where not to use
Dirty or oily supply air.

Particulate or oil carryover fouls the nozzle within hours and kills vacuum. → 5-micron coalescing filter + precision regulator immediately upstream — non-negotiable on every ejector install.

03Key selection criteria

What we need to spec it right.

From the machine spec sheet → to the part number. Answer what you know — leave the rest blank — and send.

01 · Input
Drives single-stage vs. multi-stage. Smooth non-porous holds with one nozzle; porous bleeds air continuously and needs the higher suction flow of stages chained in series.
Smooth non-porous (sheet metal, glass, polished plastic) · Porous / uneven (cardboard, bags, foam, fabric) · Mixed product mix (default multi-stage)
02 · Input
Sets required suction flow and vacuum reach time. Lines above 20 picks/min also need integrated blow-off for clean release within milliseconds of the drop command.
Low (<10 pp/min) · Medium (10–20 pp/min) · High (>20 pp/min — add blow-off)
03 · Input
Ejector suction flow must evacuate total cup volume within the cycle budget — undersized ejector lifts before grip is achieved. Pull from the paired cup selection (volume per cup × cup count).
Single cup · 2–4 cup array · 5–10 cup array · 10+ cup array (flag for engineering)
04 · Input
Read the FRL (filter-regulator-lubricator) setting at the drop. Below 58 PSI the ejector cannot reach rated vacuum; above 72 PSI air is wasted past the optimum.
58–65 PSI (low end of optimum) · 65–72 PSI (sweet spot) · >72 PSI (regulate down — wasted air)
05 · Input
Short picks take a standard ejector; long holds justify the energy-saving check-valve variant, which stops air once vacuum is reached and pays back in months on 24/7 lines.
Short-cycle pick (move, drop, move) · Long-dwell hold (fixturing, slow transfer — spec energy-saving variant)
06 · Input
Self-contained vacuum blocks bundle supply/release valves, switch, and blow-off — fewer fittings, faster install, single SKU. Standalone ejector for retrofit into existing manifolds.
Standalone · Integrated supply/release valves · Integrated blow-off (high-cycle) · Self-contained block (valves + switch + blow-off)
07 · Input
IO-Link is a single-cable digital protocol that reports vacuum value continuously to the PLC. Confirm the valve terminal already has an IO-Link master node, or quote one alongside.
Discrete switched output only · IO-Link to existing master · IO-Link + master node (no existing master)
08 · Input
Number of pieces for this configuration. One ejector per gripper circuit; multi-cup arrays may need one per cup or one per manifold zone. Add separate quote lines if cup specs differ between positions.
1–10 pcs (typical new build) · 25–100 pcs (machine MRO) · 500+ pcs (OEM build lot)

Need different sizes, colors, or quantities? Fill the form, add to quote, then fill again — each click is one quote line.

04Choose your solution tier  ·  core differentiator

Whatever your lever — spec, value, or price — SPC has the right brand.

Most distributors sell one brand per product type. SPC's 60-brand portfolio means every Product Type page surfaces three real options matched to how your customer is buying today. Pick the tier; the quote desk handles the cross-reference.

01 Industry Leader 1 brand
SMC
ZH series body-ported single-stage vacuum ejectors; ZL112 / ZL212 series three-stage multistage ejectors
View brand →
05How to sell this  ·  distributor talk track

The tier conversation closes the deal. The cross-reference catalog wins the next one.

Ejectors are the no-pump path. If the gripper moves, the ejector wins on weight, plumbing, and installed cost. The pump is only right when vacuum is steady-state and stationary.
The SPC difference · how distributors actually buy

The 30-second positioning

Sell the sub-system, not the ejector. Every ejector quote is four lines: ejector + suction cup + vacuum sensor + replacement cup on a standing-reorder schedule. Quote the matched cup and switch alongside every ejector as the complete EOAT block.

Tier: Industry Leader tier — tight nozzle tolerances, predictable air-consumption curves, integrated valves and switches in a single block, IO-Link-ready. Emerging tier at 60-70% of price is viable on simple single-stage picks at moderate cycle rates. Import-tier is bench/prototype only.

The structural conversation — four pieces. Get the workpiece (smooth vs. porous, drives single-stage vs. multi-stage). Get the cycle rate × cup volume (drives required suction flow). Get the dwell pattern (short-cycle vs. long-dwell, drives energy-saving variant). Get the supply pressure at the machine (must land in the 58-72 PSI sweet spot).

Recurring economics. Ejectors themselves are largely maintenance-free — no motor, no oil, no vane wear. The recurring lines are cups (the wear part, replaced 3-12 months), switches (one per ejector on critical picks), and the FRL conditioning supply air. A small 5-machine line at 1.5 SCFM each runs roughly $3-$8/day in compressed-air cost; the energy-saving upgrade is a documented payback.

Customer cue → talk move

"Mounting vacuum on a robot arm"
Ejector, not a pump. Quote the matched ejector + cup + switch as a single EOAT block. If IO-Link is already in the cell, quote the IO-Link variant.
"Line is using too much compressed air"
Walk the long-dwell ejector circuits. Upgrade non-energy-saving units on fixturing holds to check-valve-held variants. Quote with a payback estimate.
"Robot missing picks at high cycle rate"
Undersized ejector OR single-stage on a porous workpiece. Quote multi-stage variant with the next bore size up. Pair with a switch to confirm grip before the move.
"Holding parts long-term on fixtures"
Energy-saving variant with check valve. Pair with switch for continuous hold monitoring.
"High-speed line, need fast release"
Integrated blow-off block. Without it, residual vacuum holds the part 100-500 ms past release command.
"Want vacuum data on the PLC, not just contacts"
IO-Link variant. Reports vacuum value, set-point status, air-consumption data over a single 4-wire connection.
"Central vacuum pump or distributed ejectors"
Steady-state stationary vacuum (CNC tables, multi-station fixturing) earns the central pump. Moving grippers and intermittent demand almost always win on ejectors.
Request a quote → Back to tier compare ↑
06Where it's used

Industries served.

Each industry below uses this product across the listed areas. Open an industry to see how it fits the rest of its system.

Food & Beverage Processing Food & Beverage Processing →
  • Bag and pouch handling in food and consumer packaging
Packaging & Printing Packaging & Printing →
  • Packaging and case-handling lines
  • Bag and pouch handling in food and consumer packaging
  • Label applicators and print-and-apply machines
Electronics & Semiconductor Electronics & Semiconductor →
  • Electronics and PCB assembly
Metalworking & Fabrication Metalworking & Fabrication →
  • Sheet-metal pick-and-place on press lines and laser cutters
  • Vacuum fixturing on machining centers and inspection stations

Also applies to Robotic end-of-arm tooling for pick-and-place · Custom EOAT for OEM machine builders

09Install · 6 critical steps

The things that matter on the first install.

Step 01
Confirm supply pressure and air quality at the ejector inlet
Ejectors are rated 58-72 PSI optimum and 29-87 PSI working. Verify the FRL upstream is delivering clean dry air at the correct setting — particulate or oil in the supply will foul the nozzle and degrade vacuum within hours. Confirm tubing OD (outer diameter — the push-to-connect fitting size) matches the ejector inlet port and supports the rated SCFM without pressure drop.
Step 02
Mount the ejector as close to the suction cup as physically possible
Every cubic inch of hose between the ejector vacuum port and the cup is volume that has to be evacuated before grip is achieved. Mount within 6 inches of the cup on the EOAT plate. Long vacuum runs from a manifold-mounted ejector add measurable cycle delay.
Step 03
Plumb the vacuum side with minimum bends and matched tube ID
Use the largest tubing ID (inner diameter — the actual flow path) the cup fitting allows. Avoid sharp 90° fittings, multiple bends, and restrictive quick-couplers — every restriction reduces suction flow. On porous workpieces, plumbing restriction shows up directly as failed grip.
Step 04
Wire the supply solenoid valve to the PLC pick command
The ejector itself has no electrical input — air is gated by a solenoid valve upstream (integrated in the ejector block, or separate on the manifold). For integrated supply/release/blow-off blocks, wire both supply and release valves; the release pulse is what cleanly drops the part on cycle end.
Step 05
Install and aim the exhaust silencer
Multi-stage ejectors discharge through a silencer port. Confirm the silencer is unobstructed, not pointing at sensitive optics, and free of contamination at start-up. A blocked exhaust raises back-pressure inside the ejector and kills vacuum performance — check the silencer first on any degraded-suction call.
Step 06
Commission a dry-run cycle and verify vacuum reach time
Run the pick cycle without product. Measure with the paired vacuum switch or a temporary gauge tee'd into the vacuum line. If reach time exceeds budget, walk back: cup volume too large, ejector undersized, hose length too long, or supply pressure low. Validate with a loaded cycle on actual product before releasing the machine to production.
10Troubleshoot · top failures

Most returns trace to one of these causes.

Symptom
Most likely cause
Fix
Ejector reaches partial vacuum but never hits the grip-confirm set point
Supply pressure below rated optimum, contaminated supply air fouling the nozzle, undersized ejector for cup volume × bleed-in rate, or a vacuum-side leak (cracked cup, loose fitting, damaged check valve).
Read supply pressure at the ejector inlet under cycle load — if it sags below 58 PSI, the FRL or supply line is undersized. Inspect supply filter for oil/water carryover. Soap-bubble test every vacuum-side fitting and the cup seal. If supply is correct and no leaks, upgrade to multi-stage or larger nozzle bore.
Vacuum reach time too long (robot missing picks at high speed)
Cup volume too large for ejector suction flow, restrictive plumbing between ejector and cup, fouled exhaust silencer raising back-pressure, or single-stage on porous workpiece.
Shorten the vacuum run, mount the ejector closer to the cup, maximize tubing ID. Replace exhaust silencer if discolored. If geometry is optimized, upsize to multi-stage or larger bore.
Air consumption higher than expected
Non-energy-saving ejector on long-dwell hold, supply pressure set above optimum (wasted air past 72 PSI), worn nozzle (years of contaminated air), or a vacuum-side leak forcing the ejector to run continuously.
If energized more than a few seconds at a time, upgrade to check-valve-held energy-saving variant. Lower supply to 65 PSI if currently 80+. Inspect for vacuum-side leaks — the silent air-waster.
Cup releases slowly at end of cycle (residual vacuum)
No blow-off circuit installed, check valve in energy-saving variant not releasing, or vacuum-side volume too large to vent quickly.
For lines >20 picks/min, specify an ejector with integrated blow-off — a brief positive pulse breaks the seal in milliseconds. If blow-off is already specified, verify the release valve is actually opening (wiring, signal, valve internal).
Vacuum present at ejector but the part still gets dropped
Vacuum reached at the ejector port but not at the cup (vacuum-side leak between ejector and cup), cup not seating fully (contamination, misalignment, wrong cup geometry), or grip force margin too thin in practice.
Tee a gauge into the vacuum line at the cup itself (not at the ejector) to confirm vacuum is reaching the seal. Inspect cup contact face and geometry vs. workpiece. Recalculate required cup count and size from part weight + acceleration — many "dropped part" investigations end at undersized cups, not the ejector.
